Graphic Multi-Channel Ultrasonic Portable Meter

[ALSONIC-DSPPL]

The SmartMeasurement Alsonic DSPPL is a portable transit-time flow meter with clamp on transducers for non-invasive liquid measurement. This ultrasonic flow meter uses patented Fine Time measurement technology, making use of ultrasonic beams that can measure at pico-second time intervals. This rapid array of measurements enables accurate, drift-free flow rate measurement in liquids that contain a second phase of strained solids or gas bubbles.
The Alsonic DSPPL clamp on flow meter utilizes DSP technology, which enables “cross correlation” of ideal signals to cancel extraneous noise signals and creates a three-dimensional cross section of the velocity distribution profile of the medium flowing through the pipe.
DSP technology also enables the use of FFT (Fast Fourier Transforms) in order to generate the two signals at the same frequency. This increases the signal-to-noise ratio for accurate, drift-free flow measurement in liquids.

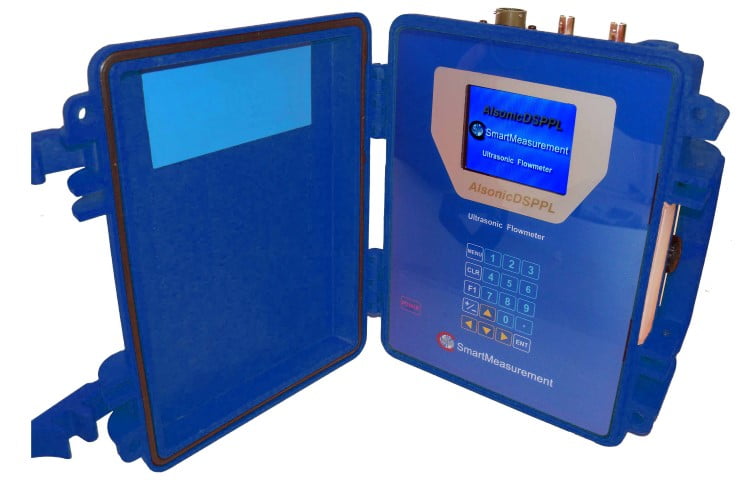

ALSONIC DSP PL

Click image to enlarge

Request a quote on an Alsonic portable ultrasonic flow meter for your application. Contact SmartMeasurement to learn more.
  • Color graphic LCD display (128×64) for flow rate, total flow & signal shape
  • 4.0 Mbytes data logger up to 200,000 data fields
  • Velocities from 0.03 to 40 feet/sec (0.01 to ± 12 m/s)
  • Measures flow rates for any liquid containing ≤ 30% suspended solids, including waste water
  • NIST traceable calibration certificate
  • High accuracy: ±1.0% of reading with single path, ±0.5% of reading with dual path
  • Oscilloscope function for diagnostics
  • Durable carrying case allows for portable use of the instrument
  • Patented Fine Time measurement technology
  • Data logger function includes date, totalizer, diagnostics
  • Response time less than 1 second
Measuring Principle:Transit time differential
Pipe Sizes:B Type : ½” ~ 4′ (15 mm ~ 100 mm)C Type : 2″ ~ 12″ (50 mm ~ 300 mm)D Type : 12″ ~ 40″ (200 mm ~ 1000 mm)E Type : 20″ ~ 240″ (500 mm ~ 6000 mm)
Pipe Material:Cast Iron, Stainless Steel, Ductile Iron, Copper, PVC, PVDF, Aluminum, Asbestos, Fiberglass
Liner Material:Tar Epoxy, Rubber, Mortar, Polypropylene, Polystryal, Polystyrene, Polyester, Ebonite, Polyethylene, Teflon
Accuracy:± 1% of reading with single path± 0.5% of reading with dual path
Repeatability:± 0.2% of reading
Engineering Units:m³, Liter, US Gallon, Imperial Gallon, Million Gallon, Cubic Feet, US Barrels, Imperial Barrels, Oil Barrel
Flowrate:4 ½ digit
Totalizer:10-digit, Positive, Negative & Net values
Time Units:Second, Minute, Hour, Day
Display:Color Graphic LCD 128×64 with backlight
Other:Oscilloscope function for diagnostics
Protection:Display: NEMA 4 (IP65)Transducers: IP68 (Submersible)
Response Time:Less than 1 second
Keypad:16-key touch pad
Ambient temperature:-4 ~ 140° F (-20 ~ 60° C)
Fluid Velocity:0.03 ~ ±40 feet/sec (0.01 ~ ± 12 m/s)
Resolution:0.003 feet/sec (0.001 m/s)
Data logger:4.0 Mbytes,up to 200,000 bits of data
Weight:7.25 lbs (3.3 Kg)
Max. Cable Length:650′ (200 M)
Power Supply:Battery operated; 90 ~ 260VAC 50/60 Hz recharger included
Communication:RS-232
Fluid Temperature:-40 ~ 250° F (-40 ~ 120° C)
Alarm:two alarm oututs configurable for total, hi/low flow rate
Data storage:Operation parameters and totalization data are stored by EEPROM for more than 10 years
Power Consumption:Less than 20W
Dimensions:See data sheet
Output:two analog 4-20 mA
