Energy/BTU Magnetic Flow Meter

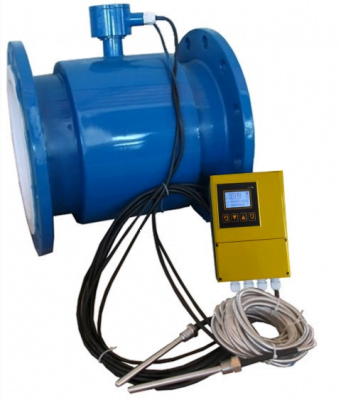

The ALMAGEG is an in-line electromagnetic energy flowmeter ideal for conductive liquids.  A wide variety of sizes are available to accommodate nominal pipe diameters ranging from ½” through 120″. The ALMAGEG may be used in many applications that require accurate thermal energy measurement such as chilled water, hot water and condenser water systems.  The ALMAGEG magmeter is available in a stand- alone configuration and may also be used with various SMC transmitter and display packages.


Click image to enlarge

  • Available with a wide range of liner materials
  • Fluid Velocity range of 0-32 feet/sec, with good results for low flow applications
  • Flange-type process connections are standard; ANSI, DIN, JIS style available
  • Ideal for energy management applications
  • Non-invasive measuring technique provides low pressure loss and excellent particle tolerance
  • FEP liner available for vacuum pressure applications
  • High accuracy – ±0.5% of reading standard or ±0.2% of range
  • Bi-directional measurement
  • Available with PT100 and PT1000 temperature sensors
Sizes: ½” ~ 120″ (15 ~ 3000mm)
Measuring Range: 0.9 – 32 feet/sec (0.9 – 10 m/s)
Temperature: w/ integral electronics: 15~140 °F (-10~60 °C)
Accuracy: ±0.5% of reading ±0.2% of FS
Process Connection: Flange, wafer
Liner: Polyurethane, Neoprene, FEP (up to 12″), PTFE
Flange Types: JIS, ANSI, PN
Material : SS #304 flow tube, carbon steel flanges & coil housing, powder coated aluminum electrical enclosure
Conductivity: must be ≥ 5 µS/cm
Electrode & Grounding: Stainless Steel #316L / Hastelloy B / Hastelloy C / Titanium / Tantalum / Platinum -iridium alloy
Display: Flow rate, flow velocity, percentage, Total flow, total energy flow
Grounding Resistance: Must be less then 10 Ω
Protection: IP 65 or IP 68 (Submersible, with remote style)
Ambient Tempearture: -15~140 °F (-25~60 °C)
Cable entry: 2 X PG11
Power Consumption: ≤ 15 Watts
