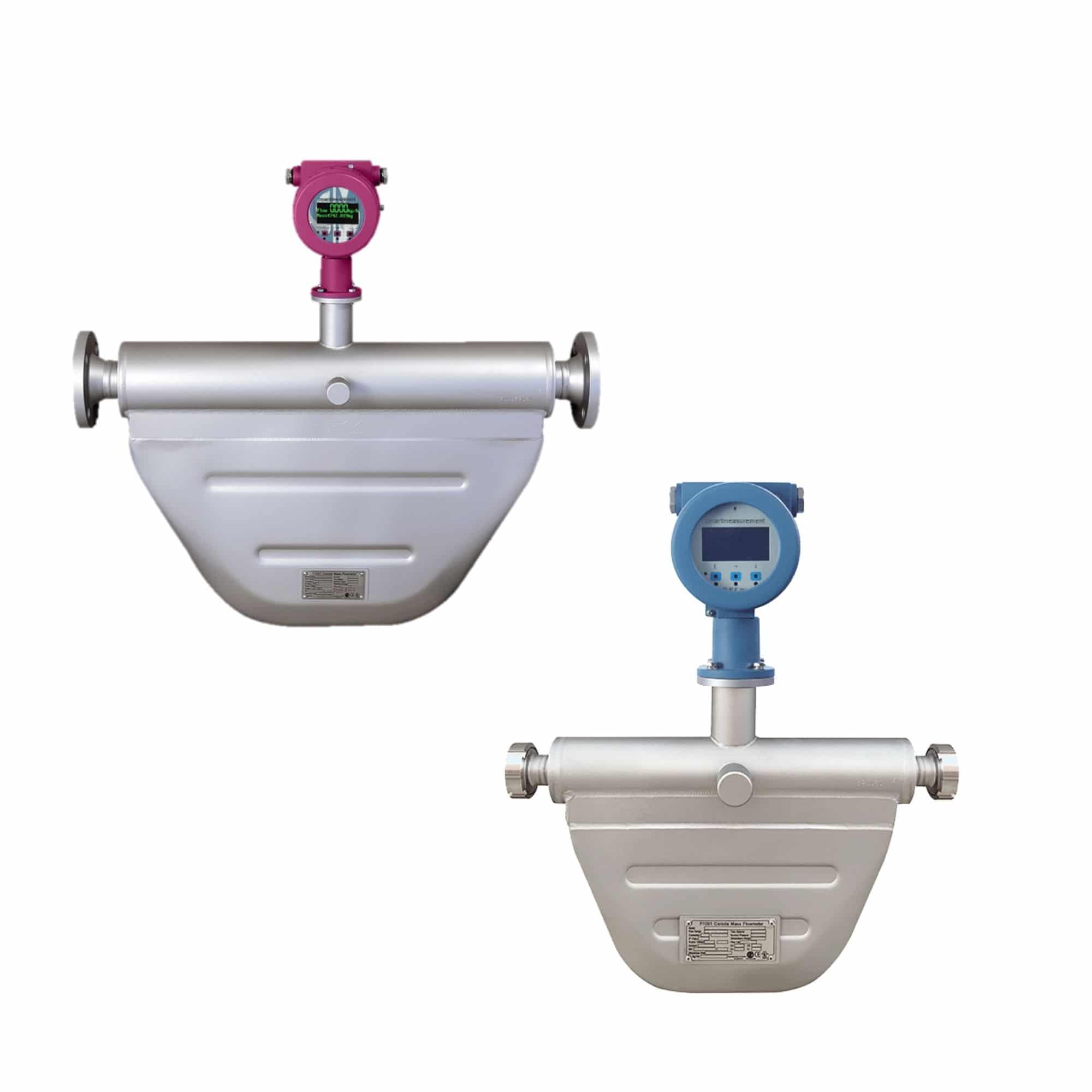

SmartMeasurement’s ALCM-MB Micro-Bend Coriolis mass flow meter employs a unique tube arrangement, with U-shaped measuring tubes that are formed with significantly smaller radii versus traditional U-tube type Coriolis meters. The more gradual radius of our mass flow meters’ tube geometry allows for a more compact design and significantly reduced pressure differentials versus other Coriolis meters.
SmartMeasurement Coriolis Meter Technology
Our ALCM-MB Micro-Bend Coriolis mass flow meters feature an easy-to-read OLED display that can be configured to display either mass or volumetric flow rates in a variety of user-selectable engineering units, as well as density, temperature, and totalized flows.
These liquid flow meters offer exceptional value by providing a highly accurate, compact instrument that can measure flow, density, and temperature in a single package. They provide a lower pressure differential and a more compact design versus competitors’ Coriolis meters, and at a lower cost.
The unique combination of features and capabilities offered by ALMC-MB Coriolis mass flow meters make them the ideal choice for a variety of industries and applications, including Food & Beverage, Petrochemical, Oil & Gas, Paint, and Industrial Process Control.
Request a quote today or contact SmartMeasurement to learn more about our Micro-Bend Coriolis mass flow meters.
- Suitable for aggressive & contaminated media
- Measurement of mass flow, density, temperature & volume flow
- High rotation frequency & well-balanced measuring tubes
- Excellent purging & sterilization capabilities thanks to a construction that is free of dead spots
- Operates at temps up to 575°F (300°C)
- Individual 8-point-calibration including report
- Optional EX protection
|Flow Range:||3,300～2,200,00lb/hr.(1500～1000000 kg/hr.)|
|Process Connections:||Flanged (ANSI, DIN, Tri-Clamp®)|
|Line Sizes:||½”~8”(15-200 mm)|
|Process temperature:||-58~392 °F (-50~200 °C) -std|
|Tube geometry:||U-Tube with Micro Bend|
|Accuracy:||±0.5% of reading(std), 0.2% or 0.15% (opt)|
|Repeatability:||±0.075% of reading|
|Engineering Units (Mass):||kg, lb, ton|
|Display:||Color Graphic OLED|
|Engineering Units (Temp.):||°C, °F|
|Engineering Units: (Volume):||m³, Liter, US Gallon, Imperial Gallon|
|Zero Stability:||0.1% full-scale|
|Ambient temperature:||-5~312 °F (-20~55 °C)|
|Zero Drift (%FS / °C):||0.005|
|Max Working Pressure:||360 psig (2.5MPa) std, 930 psig optional|
|Measuring Tube Mat’l:||SS per DIN1.4571 (AISI 316Ti) standard|
|Power Supply:||24 VDC, ± 20%; 86~260VAC,50~60Hz|
|Housing Material:||SS #304|
|Outputs:||4-20 mA, 0-10 kHz pulse, RS485|
|Power Consumption:||Less than 6W|
|Density Measuring Range:||12.5-125lb/ft³ (0.2~2.0 g/cc)|
|Density Accuracy:||±0.06 b/ft³ (0.001 g/cc)|
|Temperature Accuracy:||up to ±1°F (°C)|
