[ALMGPD]

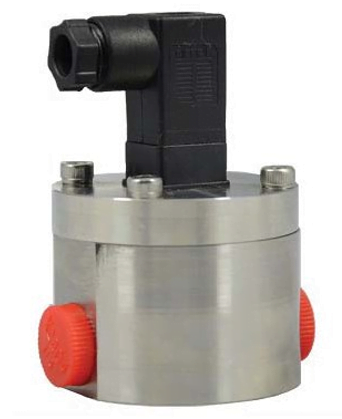

The SMC Series ALMGPD Micro-count oval gear flow meters offer precise measurement with guaranteed accuracy and repeatability. Manufactured from 316 grade stainless steel with optional aluminum models for non-aggressive liquids, these positive displacement low-flow meters can measure liquids of varying viscosity and density with little or no effect on accuracy across a linear range.
A key feature of the oval gear principle of measurement is its extremely low-pressure loss and capacity to cope with pulsating flows. A high-resolution calibrated pulse output requiring DC power can be supplied or a remote LCD rate counter with optional pulse and 4-20mA re-transmission is available with the ALMGPD.
Request a quote on an ALMGPD oval gear positive displacement flow meter for your application. Contact SmartMeasurement to learn more.
Click image to enlarge
- Compact and lightweight, suitable for OEM use
- Reverse-flow detection and pulse multiplication functions
- Ex-protection EExiaIICT6/T4
- Resistance to high voltage from 50 kV up to 120 kV
- Special meters with high-pressure connectors for service up to 690 barg (10,000 PSIG)
- Heated versions are available on request
- The K-factor (no. of pulses per liter) is nearly constant over a wide range.
| Measuring Principle: | Oval Gear Positive Displacement |
| Process temperature: | up to 180 °F (80 °C) |
| Line size: | ⅛”~ ½” |
| Operating pressure: | 465 psig (32 barq max) Up to 14,000/1000 bar – **For higher pressures, consult factory** |
| Accuracy: | ±0.5% of reading |
| Body Material : | SS# 316 (Standard) Aluminum (Optional) |
| Repeatability: | ±0.5% of reading |
| Flow Ranges: | See PDF Brochure, Page 2 of the Ordering Guide |
| Viscosity: | >2300 SSU (500 cP) @ 1.0 S.G. recommended |
| Process Connections: | ⅛”~ ½” BSP or NPTF |
| Electrical Connection: | Hirschmann DIN |
| Filtration: | 200 Mesh Minimum (Upstream required) |
| Ambient Temperature: | -4 to 122°F (-20 to +50°C) |
| Power Consumption: | 50 mA Maximum |
| Power Supply : | 4-26 VDC |
| Output: | Open Collector square wave pulse |
